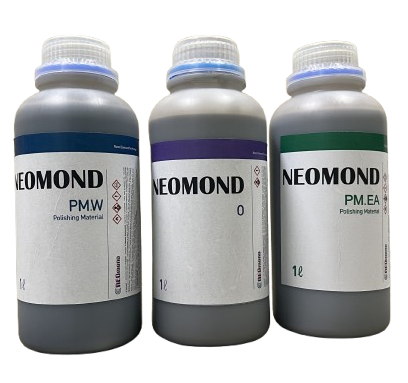

NEOMOND series Product family
It is a product dispersed in a solvent with a
size of several tens of nanometers by controlling the aggregation phenomenon of
nanodiamond particles manufactured by the
explosion method, and can be applied as an
industrial additive to various fields.
neomond Products | Menstruum | Applications |
NEOMOND-W | Water | abrasive heat dissipation material electroplating |
NEOMOND-E | Ethylene glycol | |
NEOMOND-EA | Ethyl alcohol | |
NEOMOND-O | Oil | lubricant additive |
NEOMOND -MA | Methyl alcohol | Polymer additives (resin, paint, film, etc.) |
NEOMOND-BA | Butyl alcohol | |
NEOMOND-IA | IPA | |
NEOMOND-T | Toluene | |
NEOMOND-X | Xylene | |
NEOMOND-M | MEK | |
NEOMOND-N | NMP |
NEOMOND series Product family
It is a product dispersed in a solvent with a size of several tens of nanometers by controlling the aggregation phenomenon of nanodiamond particles manufactured by the explosion method, and can be applied as an industrial additive to various fields.
neomond Products | Menstruum | Applications |
NEOMOND-W | Water | abrasive heat dissipation material electroplating |
NEOMOND-E | Ethylene glycol | |
NEOMOND-EA | Ethyl alcohol | |
NEOMOND-O | Oil | lubricant additive |
NEOMOND-MA | Methyl alcohol | Polymer additives (resin, paint, film, etc.) |
NEOMOND-BA | Butyl alcohol | |
NEOMOND-IA | IPA | |
NEOMOND-T | Toluene | |
NEOMOND-X | Xylene | |
NEOMOND-M | MEK | |
NEOMOND-N | NMP |
Micro-element abrasives Product family
Micro-element abrasives Product family Performance
lubricant additive Product family
Evaluation of engine lubrication characteristics
[Internal Combustion Engine Performance Evaluation]
- Lubricating oil: commercial oil, NEOMOND-CA
- apply RPM : 1900
- Evaluation time: 24 hours
type of lubricant | maximum torque | fuel consumption rate (g/kw-hr) | CO emissions(ppm) | Smoke emissions(%) |
commercial oil | 69.9 | 267 | 865.5 | 21.07 |
NEOMOND-CA | 76 | 241.4 | 818.3 | 15.2 |
⇒ About 9% increase in torque
⇒ Reduced fuel consumption by about 10% (Improved fuel economy)
⇒ Reduced CO and Smoke emissions
[Evaluation of friction properties]
- Experimental device: Reciprocating friction/wear testing device
- applied load : 0~250 kgf
- applyrpm : 0~6000
type of lubricant | scuffing (kg) | coefficient of friction | wear(mm^3) |
commercial oil | 200 | 0.12 | 0.56 |
NEOMOND-CA | does not occur | 0.106 | 0.41 |
⇒ Suppression of Scuffing
⇒ Coefficient of friction and wear reduction effect due to nanodiamond particles,
12% reduction in friction coefficient & 27% reduction in wear compared to commercial days
※ Scuffing(Scuffing-adhesive wear, scoring)
As one of the gear damage phenomena, friction and heat remove metal particles from the surface during engine operation.
Occurs due to direct metal contact when proper oil film formation on the friction sliding surface is not achieved.
lubricant additive Product family Performance
Wafer abrasive Product family
As a diamond abrasive, it realizes a high MRR value and is an eco-friendly and easy-to-clean product as a water-soluble abrasive.
Applied to braves with high Material Removal Rate (MRR) to remove scratches left by wire sawing and polishing. Applied to abrasives that can achieve a certain level of surface roughness before polishing (CMP). Applied to abrasives that can achieve high flatness.

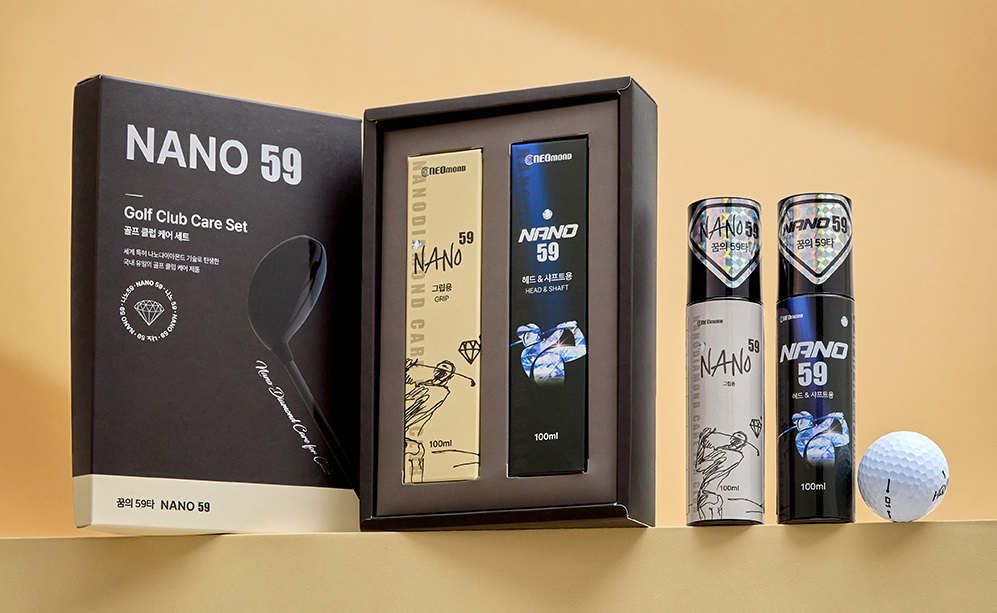

NANO59 Product family
NANO59 Product family Performance
nanosseugssag Product family
Nanodiamond particles bonded to each other fill the damaged clear layer and at the same time It creates a nano-coating film to protect it from foreign substances and chemicals.
painted surface
glass side
nanosseugssag Product family Performance
lubricant additive Product family
Evaluation of engine lubrication characteristics
[Internal Combustion Engine Performance Evaluation]
- Lubricating oil: commercial oil, NEOMOND-CA
- apply RPM : 1900
- Evaluation time: 24 hours
type of lubricant | maximum torque | fuel consumption rate (g/kw-hr) | CO emissions (ppm) | Smoke emissions (%) |
commercial oil | 69.9 | 267 | 865.5 | 21.07 |
NEOMOND -CA | 76 | 241.4 | 818.3 | 15.2 |
⇒ About 9% increase in torque
⇒ Reduced fuel consumption by about 10%
(Improved fuel economy)
⇒ Reduced CO and Smoke emissions
[Evaluation of friction properties]
- Experimental device: Reciprocating
friction/wear testing device
- applied load : 0~250 kgf
- applyrpm : 0~6000
type of lubricant | scuffing (kg) | coefficient of friction | wear (mm^3) |
commercial oil | 200 | 0.12 | 0.56 |
NEOMOND -CA | does not occur | 0.106 | 0.41 |
⇒ Suppression of Scuffing
⇒ Coefficient of friction and wear reduction effect due to
nanodiamond particles,
12% reduction in friction coefficient & 27% reduction in wear
compared to commercial days
※ Scuffing(Scuffing-adhesive wear, scoring)
As one of the gear damage phenomena, friction and heat remove
metal particles from the surface during engine operation.
Occurs due to direct metal contact when proper oil film
formation on the friction sliding surface is not achieved.
lubricant additive Product family
Performance
Wafer abrasive Product family
As a diamond abrasive, it realizes a high MRR
value and is an eco-friendly and easy-to-clean
product as a water-soluble abrasive.
Applied to braves with high Material Removal
Rate (MRR) to remove scratches left by wire sawing and polishing. Applied to abrasives that can achieve a certain level of surface roughness before polishing (CMP). Applied to abrasives that can achieve high flatness.
NANO59 Product family
NANO59 Product family Performance
nanosseugssag Product family
Nanodiamond particles bonded to each other
fill the damaged clear layer and at the same
time It creates a nano-coating film to protect
it from foreign substances and chemicals.
painted surface
glass side
nanosseugssag Product family
Performance
